Capsule & Panoramic Elevators in Islamabad & Rawalpindi
- Why Install a Home Elevator
What Is a Capsule or Panoramic Elevator?
At Islamabad Elevator Solutions, we specialize in glass lift installation Pakistan wide, engineered for the environment and aesthetics of each building. A panoramic lift in a hotel atrium has different requirements from one in a private home in Bani Gala or a shopping mall in Blue Area. We handle the engineering, glass specification, shaft construction, and interior finishing to deliver a complete installation — not just equipment supply.

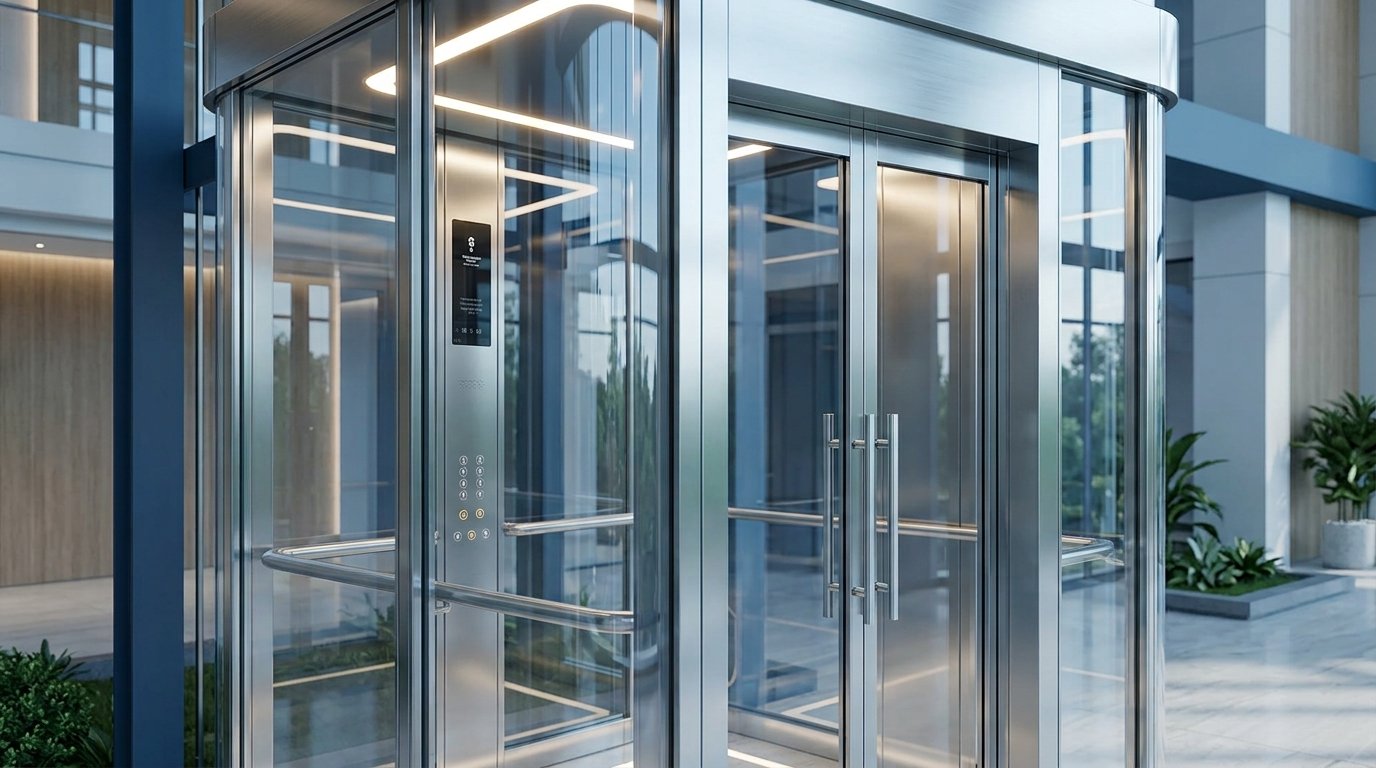

Our capsule elevators use traction drive systems with variable frequency control, providing smooth, quiet travel that matches the premium feel of the cabin. Landing doors are precision-fitted to create a seamless transition between floor and lift, and our interior packages can match any design language from contemporary minimalism to warm traditional finishes.
- Capacity: 320 kg (4-person) to 1250 kg (16-person)
- Speed: 0.63 m/s to 2.5 m/s with VFD smooth control
- Glass: Laminated VSG safety glass, 8 mm to 17.5 mm thick
- Drive: Gearless traction with permanent magnet motor
- Finishes: Stainless steel, tempered glass, wood, stone, LED
- Travel: Up to 50 metres / 16 floors
- Our Home Elevator Range
Types of Capsule & Panoramic Elevators
Cylindrical Capsule Elevator
A fully curved glass cabin that is round or oval in plan, requiring a cylindrical glass shaft. Often free-standing in hotel lobbies, mall atriums, or commercial plazas. Delivers the most dramatic visual impact of any elevator type.
Facade Panoramic Elevator
Installed on the exterior or interior facade of a building with one or two flat glass walls. The most practical panoramic option for buildings with an existing wall or atrium glass facade, minimising structural modifications.

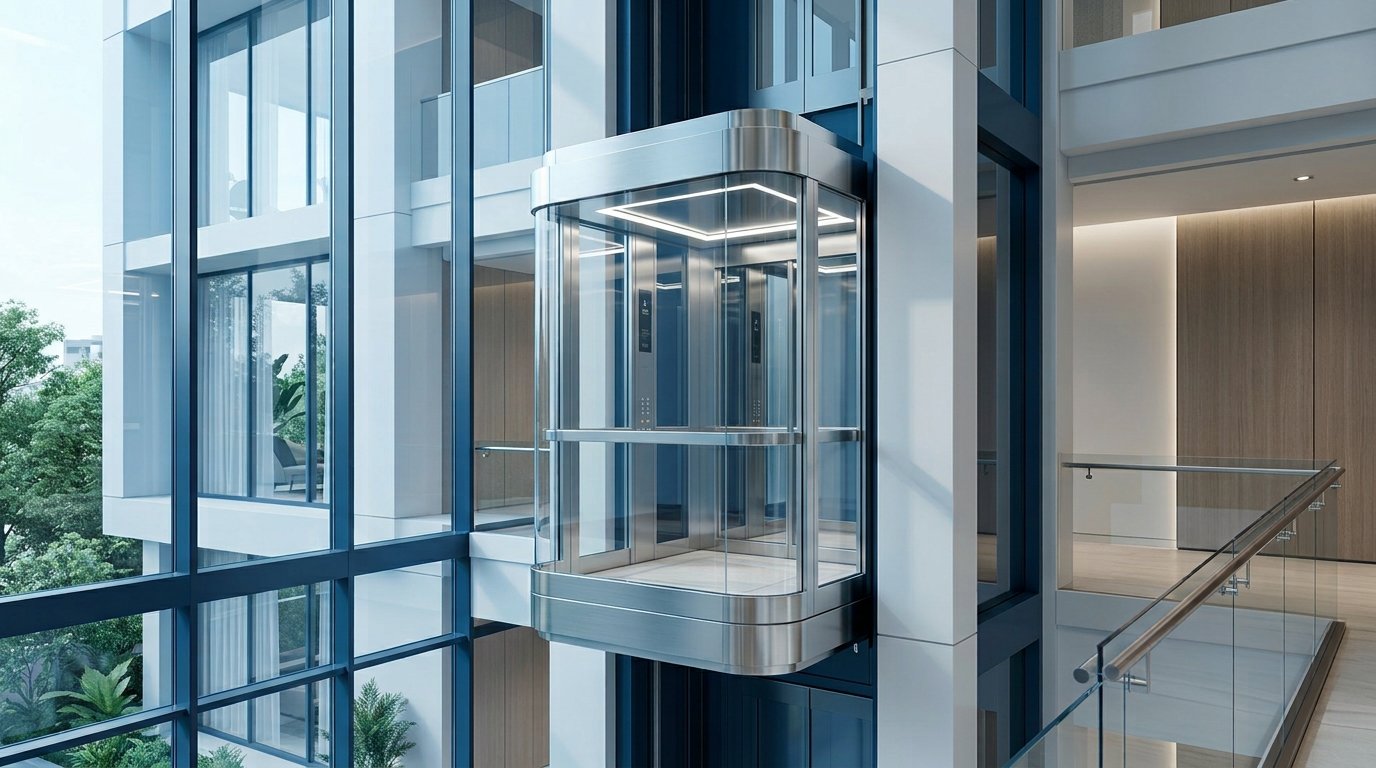

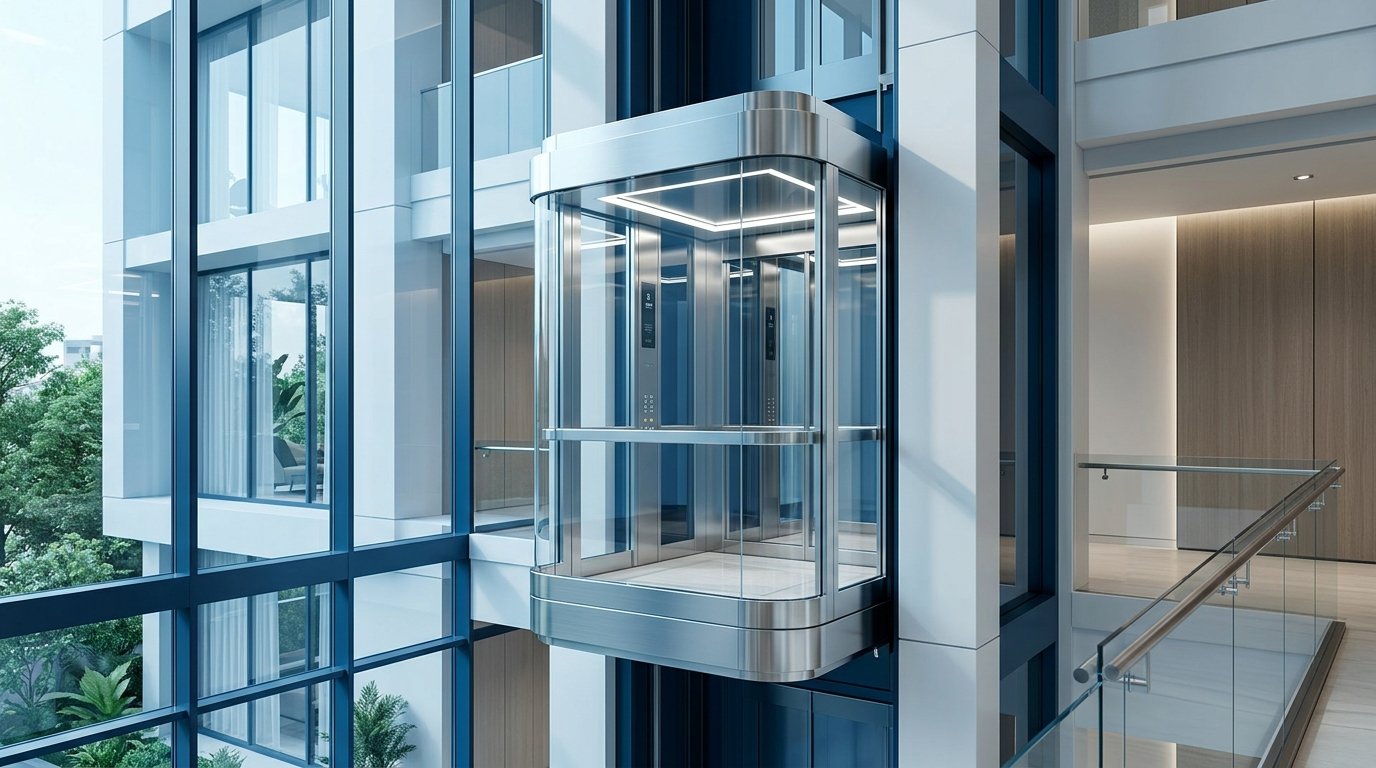

Atrium Panoramic Elevator
Three-sided glass cabin designed for installation in a multi-storey atrium, giving passengers a full view of the building's interior. The glass shaft is integrated into the atrium structure, maximising openness and light across all floors.

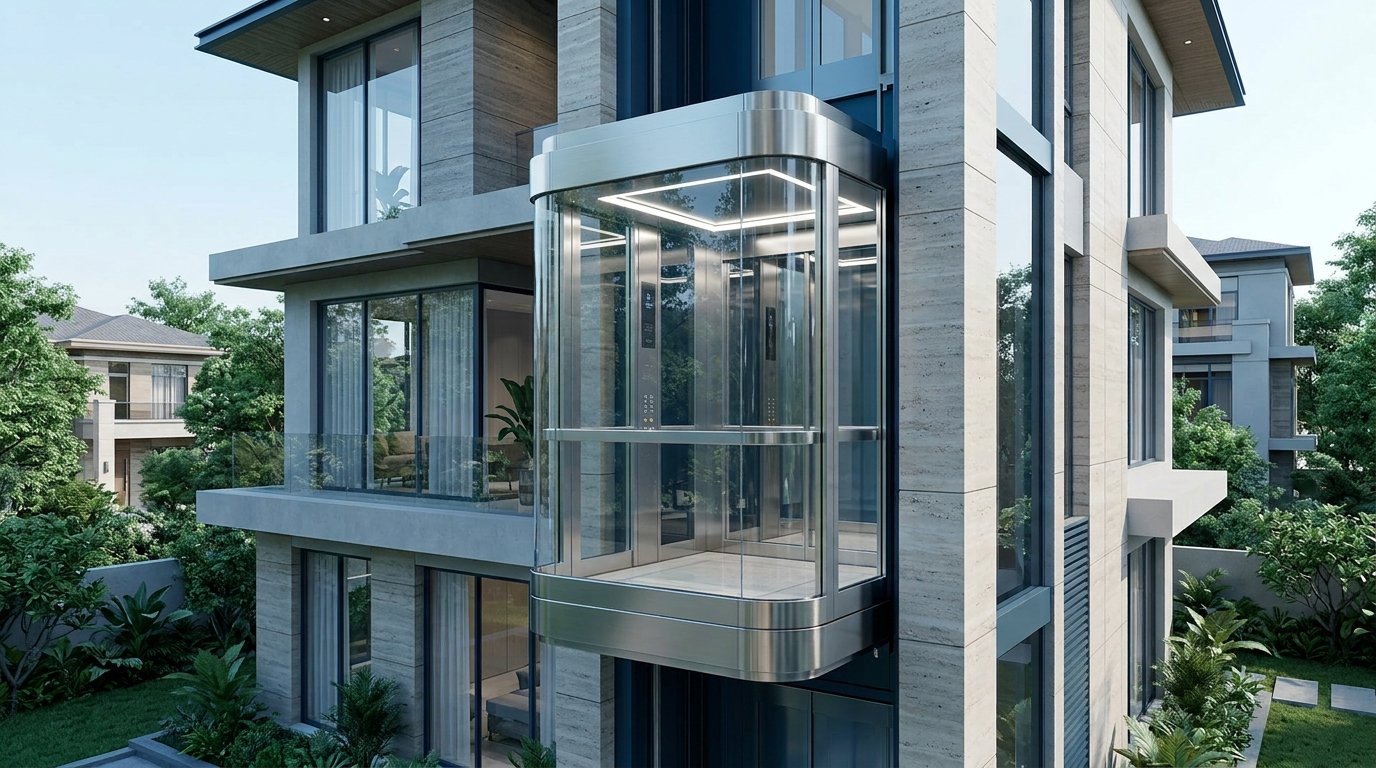

Residential Glass Elevator
Compact panoramic elevators for luxury homes, with capacities from 320 kg to 480 kg. Often installed within a glass or steel shaft that becomes the visual centrepiece of a staircase or double-height foyer in upscale Islamabad homes.
Exterior Capsule Elevator
Mounted on the outside of a building facade, adding vertical access and a striking visual identity without major interior structural work. Requires weatherproof motor systems, sealed electrical enclosures, and UV-resistant glass panels rated for Pakistani climate.

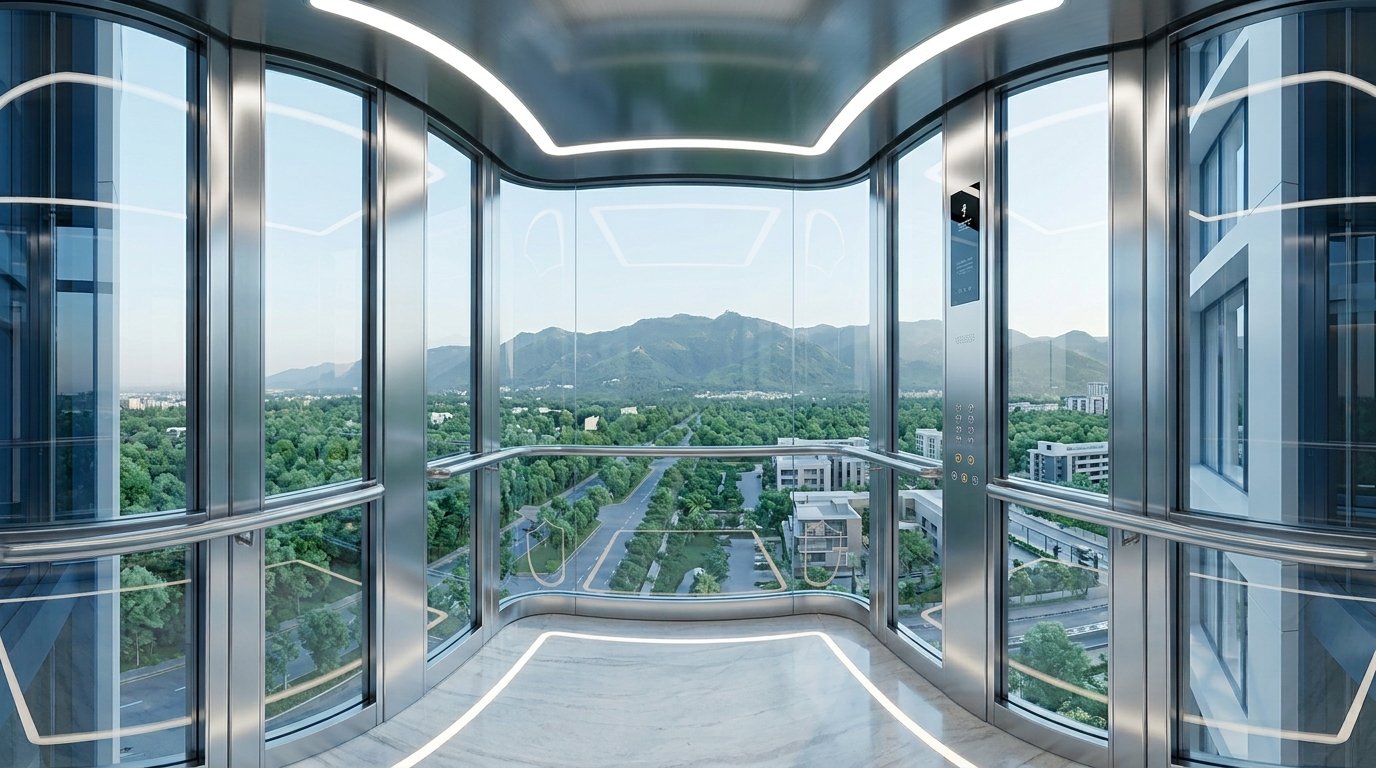

Observation Elevator
Designed for buildings where the elevator journey itself is part of the experience — an observation elevator Islamabad landmarks and hilltop restaurants use to give riders full glass sightlines. These high-speed panoramic lifts travel up to 2.5 m/s with full glass cabins offering unobstructed views.
- Our Process
Where Capsule Elevators Make an Impact
Hotels & Resorts
Lobby and atrium panoramic elevators that define the guest experience and become a signature visual element of the property.

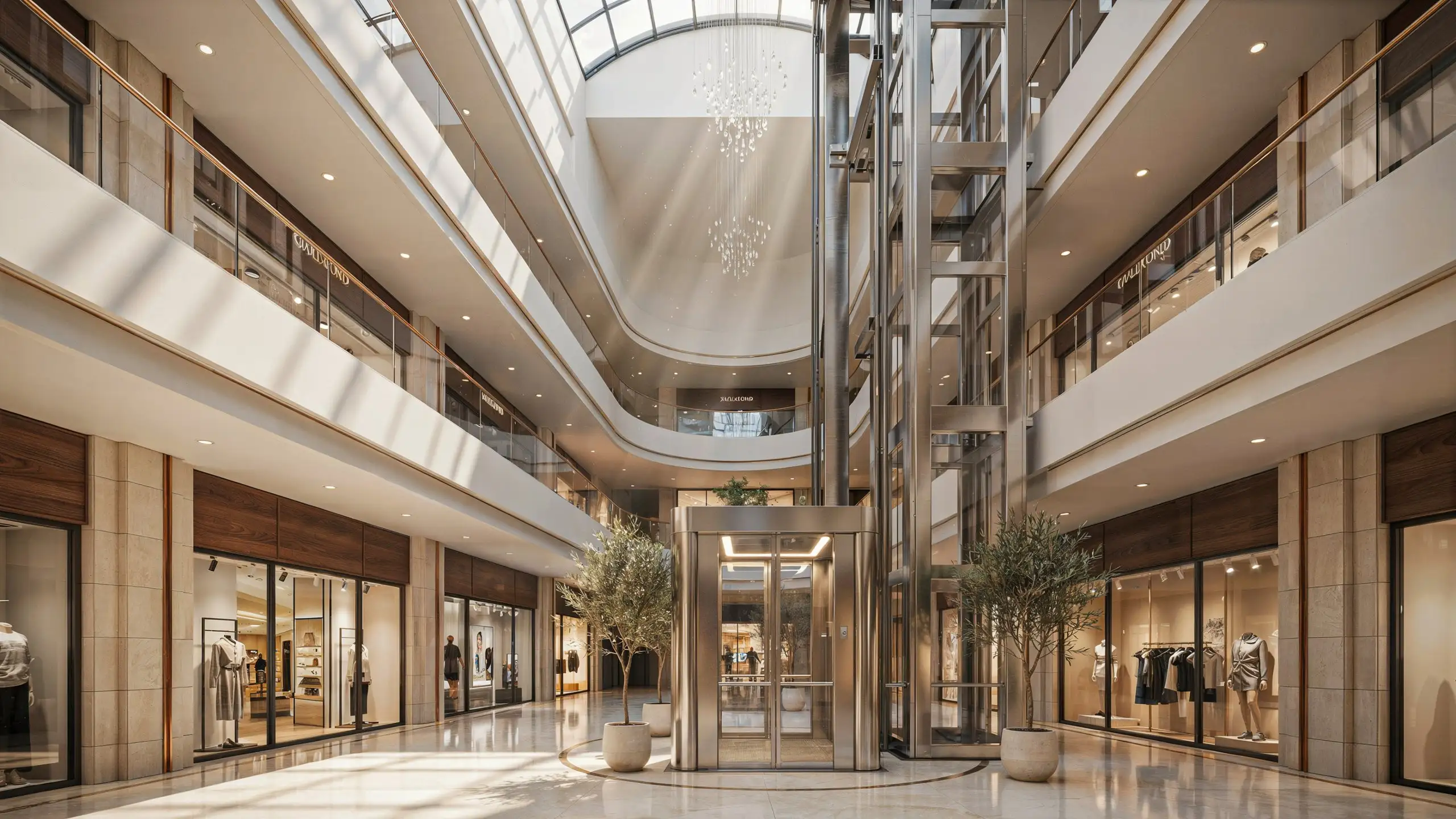

Shopping Malls
High-capacity capsule elevators with 8 to 16 persons for multi-level retail environments where shopper flow and visual impression both matter.
Luxury Residences
Compact residential panoramic lifts that become the centrepiece of a double-height foyer or open staircase in upscale homes.
Office Buildings
Corporate office panoramic elevators that reinforce brand identity and create a strong first impression for clients entering the building.
Restaurants & Banquet Halls
A scenic lift Rawalpindi diners remember — observation elevators that allow guests to take in panoramic views during travel between floors, especially in hillside or rooftop venues.
Private Hospitals & Clinics
Glass elevators in premium healthcare facilities that create a calming, open environment for patients and support premium facility positioning.
Universities & Schools
Architectural panoramic lifts in educational institutions with atriums or multi-storey libraries, providing accessibility with visual openness.
Landmark & Heritage Buildings
Freestanding capsule elevators added to heritage buildings as a contemporary architectural intervention, providing access without structural intrusion.
- FAQ
Frequently Asked Questions
A capsule elevator is a type of panoramic lift with an enclosed glass cabin — often cylindrical or curved — that provides full or partial 360-degree visibility during travel. It serves as both a transport system and an architectural feature, visible from outside the shaft and designed to be admired as much as used.
A panoramic elevator uses flat glass panels on one or more cabin walls, while a capsule elevator typically has a fully curved or cylindrical glass cabin. Both provide visibility during travel, but capsule elevators are most often freestanding architectural features, while panoramic elevators are more commonly integrated into a building facade or atrium wall.
Capsule and panoramic elevators are available from 320 kg (4 persons) up to 1250 kg (16 persons). Hotel and mall installations commonly use 630 kg (8-person) or 800 kg (10-person) configurations, while residential installations are typically 320 to 400 kg.
We use laminated VSG (Verbund-Sicherheitsglas) safety glass meeting EN 12600 impact resistance standards. Panels range from 10.38 mm to 17.52 mm thick. UV-resistant coatings, tinted solar control glass, frosted glass, and smart switchable PDLC glass are all available depending on the installation environment.
Yes. Exterior capsule elevators are mounted on a building's outer facade with a glass or structural steel shaft. These require weatherproof motor enclosures, sealed IP-rated electrical connections, UV-resistant glass, and a structural analysis of the facade to confirm it can carry the additional loads.
A capsule elevator installation typically takes 4 to 8 weeks from order confirmation, depending on shaft construction complexity, glass panel fabrication lead times, and the number of floors served. Larger hotel and mall projects with custom glass shafts may take 10 to 14 weeks.
Yes. All our panoramic elevators include an Automatic Rescue Device (ARD) that uses battery power to drive the cabin to the nearest floor and open the doors automatically during a power failure, allowing passengers to exit without any manual assistance required from building staff.
Yes. Compact residential panoramic elevators with 320 to 480 kg capacities are well-suited to upscale homes with double-height foyers or open staircases. A residential glass elevator typically serves 3 to 4 floors and can operate on single-phase 220V power supply.
We recommend bi-monthly maintenance for commercial capsule elevators in high-traffic environments and quarterly maintenance for residential units. Key maintenance tasks include glass seal inspection, door mechanism lubrication, safety system testing, and glass optical clarity checks.
